508 SERIES
BLG508 DT

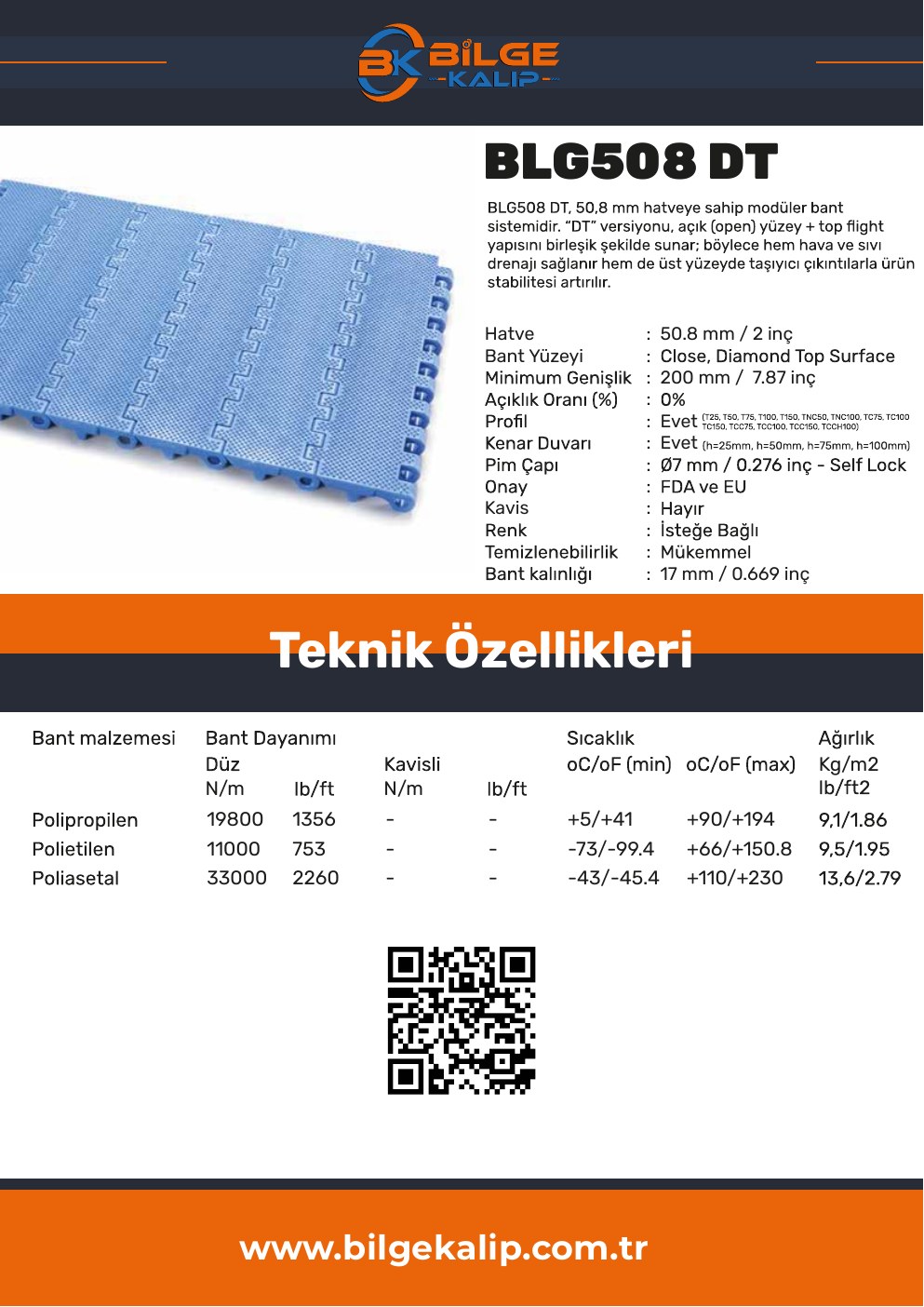

BLG508 DT is a Bilge Kalıp modular conveyor belt model in the 508 series. The listed pitch is 50.8 mm / 2 in. The belt surface is specified as Close, Diamond Top Surface. The product image and source technical data are presented together on this page.
Catalogue informationThis page is for product information only. There is no online sale or checkout.
TECHNICAL SPECIFICATIONS
BLG508 DT Technical Data
Pitch50.8 mm / 2 in
Belt SurfaceClose, Diamond Top Surface
Minimum Width200 mm / 7.87 in
Open Area (%)0%
FlightYes ( T25, T50 ,T75, T100, T150, TNC50, TNC100, TC75, TC100, TC150, TCC75, TCC100,TCC150, TCCH100 )
SidewallYes ( h=25 mm, h=50 mm, h=75 mm, h=100 mm )
Pin DiameterØ7 mm / 0.276 in - Self Lock
ApprovalFDA and EU
CurveNo
ColorOptional
CleanabilityExcellent
Belt Thickness17 mm / 0.669 in
Belt Material / Strength / Temperature
| Belt Material | Straight Strength | Curve Strength | Min. Temperature | Max. Temperature | Weight | ||
|---|---|---|---|---|---|---|---|
| N/m | lb/ft | N/m | lb/ft | °C / °F | °C / °F | Kg/m² / lb/ft² | |
| Polypropylene | 19800 | 1356 | – | – | +5 / +41 | +90 / +194 | 9,1 / 1.86 |
| Polyethylene | 11000 | 753 | – | – | -73 / -99.4 | +66 / +150.8 | 9,5 / 1.95 |
| Polyacetal | 33000 | 2260 | – | – | -43 / -45.4 | +110 / +230 | 13,6 / 2.79 |
Application Evaluation for BLG508 DT
Modular belt selection should consider the conveyed product, operating environment, belt width, line speed, temperature, transfer points and cleaning requirements together with the product code.
